Ceramic Txheej Tshuab
Ceramic Coatings machineIntroduction ZY-1913 kho kom zoo nkauj lub tshuab nqus tsev yog cov khoom siv zoo PVD txheej tshwj xeeb uas siv los tiv thaiv cov khoom siv kho kom zoo nkauj. Lub tshuab integrates cathode arc ion txheej tshuab, intermediate zaus magnetron sputtering tshuab, pulsed bias tshuab ...
- Khoom Taw qhia
IKS PVD Technology (Shenyang) Co., Ltd. yog ib qho ntawm feem txhim khu kev qha manufacturers thiab lwm tus neeg ntawm ceramic coatings tshuab nyob rau hauv Suav teb, featured los ntawm cov khoom zoo thiab tsis muaj nqi. Yog tias koj yuav mus rau cov lag luam wholesale pheej yig ceramic coatings tshuab ua nyob rau hauv Suav teb, txais tos kom tau txais cov lus hais los ntawm peb lub hoobkas.
Ceramic txheej tshuab
Taw qhia

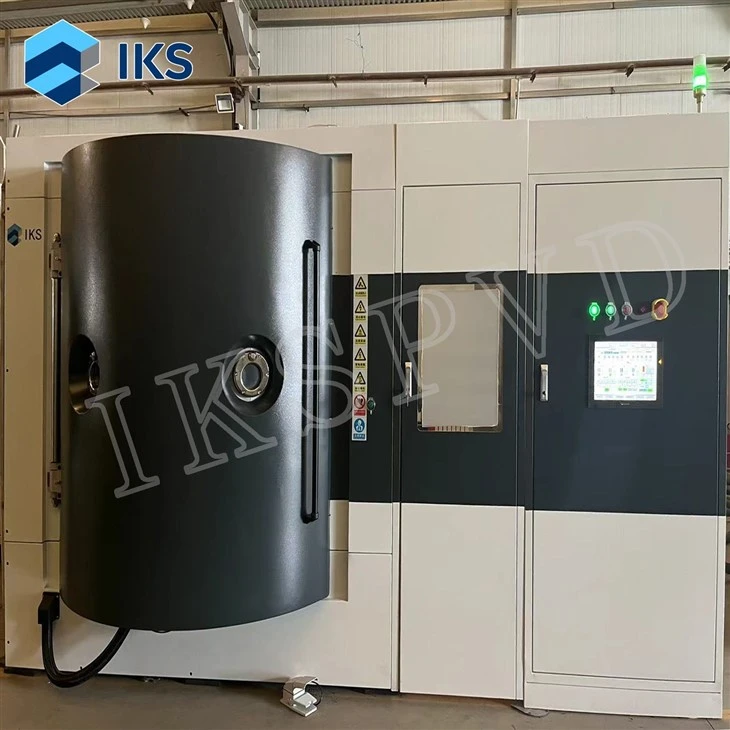

ZY-1913 kho kom zoo nkauj lub tshuab nqus tsev yog lub siab- zoo PVD txheej khoom siv tshwj xeeb rau kev tiv thaiv txheej ntawm cov khoom zoo nkauj. Lub tshuab integrates cathode arc ion txheej tshuab, intermediate zaus magnetron sputtering tshuab, pulsed bias technology thiab lwm yam technologies siab heev. Kev siv nruab nrab- zaus sputter fais fab mov thiab nruab nrab zaus sib nqus cylindrical lub hom phiaj cov khoom tau ua rau muaj kev nce ntxiv ntawm cov khoom siv lub hom phiaj thiab qhov tso nyiaj ntawm cov txheej txheej, tib lub sij hawm nws zoo heev txhim kho cov uniformity thiab adhesion ntawm cov txheej. Nyob rau tib lub sijhawm, qhov tsim tshiab tsis siv neeg tswj kev lag luam ntawm PC thiab cov kws tshaj lij automation software ua kom yooj yim thiab ua haujlwm tau zoo, ruaj khov thiab txhim khu kev qha. Kev sib koom tes ntawm software thiab kho vajtse thiab tsim kev cuam tshuam, kev soj ntsuam ntse, kev nco hauv online, kev tiv thaiv breakpoint nrog rau ntau yam kev tiv thaiv nyuaj ua rau kev siv cov cuab yeej muaj kev nyab xeeb thiab txhim khu kev qha.
Lub tshuab no tuaj yeem ua cov txheej txheem du hauv IP-dub, sawv kub, IP kub, sapphire xiav, champagne kub, nyiaj, xim av, muaj yeeb yuj, phom dub, zirconium, sawv liab thiab lwm yam xim. Cov txheej yog ntom thiab sib xws nrog muaj zog adhesion, thiab nws plays lub luag haujlwm zoo heev ntawm kev zoo nkauj thiab kev tiv thaiv. Yog li ntawd, lub tshuab zoo no yog siv dav hauv kev ua cov txheej txheem ntawm TiN, TiC, TiCN, CrN, TiAlN, thiab lwm yam ntawm lub watchcase, saib pluaj, cov khoom siv golf, kho vajtse, tableware thiab lwm yam khoom.
Nta
1. Kev tiv thaiv ib puag ncig thiab muaj kuab paug-dawb.
2. Nruab nrog lub tshuab nqus tsev loj (φ1900 × H1300) kom ntseeg tau tias muaj peev xwm thauj khoom loj thiab ua haujlwm siab, txuag nqi.
3. Tag nrho tsis siv neeg tswj qhov system nrog kev ua haujlwm yooj yim thiab kev ua haujlwm ruaj khov.
4. Cov txheej yog du heev, ntom thiab ci iab.
5. Zoo heev zaj duab xis uniformity thiab repeatability.
Specification
|
Chamber Loj |
φ1900*H1300 | Qhov chaw zoo | φ1600*H1000 |
| Max Dia ntawm Workpiece * qty | φ175 * 20pcs | Pumping -Lub Sij Hawm | (los ntawm atm.to 4 * 10-3<25 mins |
| Voltage / Hz | 380V / 50Hz | Fais fab tiag | 120 KW TSI |
| Technology | IF + ARC (yeem) | Target Qty |
12 Lub Hom Phiaj Cylindrical /8 Arc Lub Hom Phiaj |
| Qhov kawg siab | 5.0*10-4Pa | Leak Rate | <10-3Pa.L/s |
| Txheej txheem txheej |
IP-dub, sawv kub, IP-kub, sapphire xiav, champagne kub, nyiaj, xim av, xim, phom dub, zirconium, sawv liab, thiab lwm yam. |
Standard Configuration |
8 Cathode Arcs / 12 MF CylindricalHom phiaj |
| Rotating Stand Structure | Cov qauv qis |
Nqus Chamber Qauv |
Vertical Ib Qhib |
| Fais fab mov |
MF Magnetron Sputtering Fais Fab Kev muab khoom DC Pulse -kev tsis ncaj ncees Lub Hwj Chim Tshwj xeeb Nqus Arc Power Supply |
Lub tshuab nqus tsev |
Molecular Pump Roots twj tso kua mis Rotary Vane Pump |
| Txheej Txheej | 1.5-3.5 teev / cub | Chaw Ua Haujlwm | L3600 * W3200 * H2600mm |
| Tswj txoj kev |
Phau ntawv + Semi -automatic + Puv Kev koom ua ke tsis siv neeg |
Kev txhawb nqa |
Circulating Dej Siab: 2-3KG / CM3 |
|
Kev lag luam PC + PLC + Kev Lag Luam Tswj Software |
Flow: 10T / H | ||
| Peb tus kheej tshwj xeeb txheej software | Compressed Cua: 4-6KG / CM3 | ||
| Ua hauj lwm Gas | Ar, N2, O2, C2H2, lwm | Daim ntawv thov | Kho kom zoo nkauj txheej |
| Sau ntawv |
Rauv, Outlook thiab lwm yam Parameters tuaj yeem kho raws li qhovKev xav tau. |
||
Cim npe nrov: ceramic coatings tshuab, Suav teb, manufacturers, lwm tus neeg, yuav, customized, ua nyob rau hauv Suav teb
